3D Preview for Autodesk enables users to seamlessly interact with their 3D assets directly within the DAM—no need for multiple applications. This streamlined process boosts team efficiency by reducing context switching and simplifying workflows.
If you're interested in learning more about the 3D Preview for AutoDesk, please reach out to your Customer Success Manager or contact us at success@mediavalet.com.
Getting Started

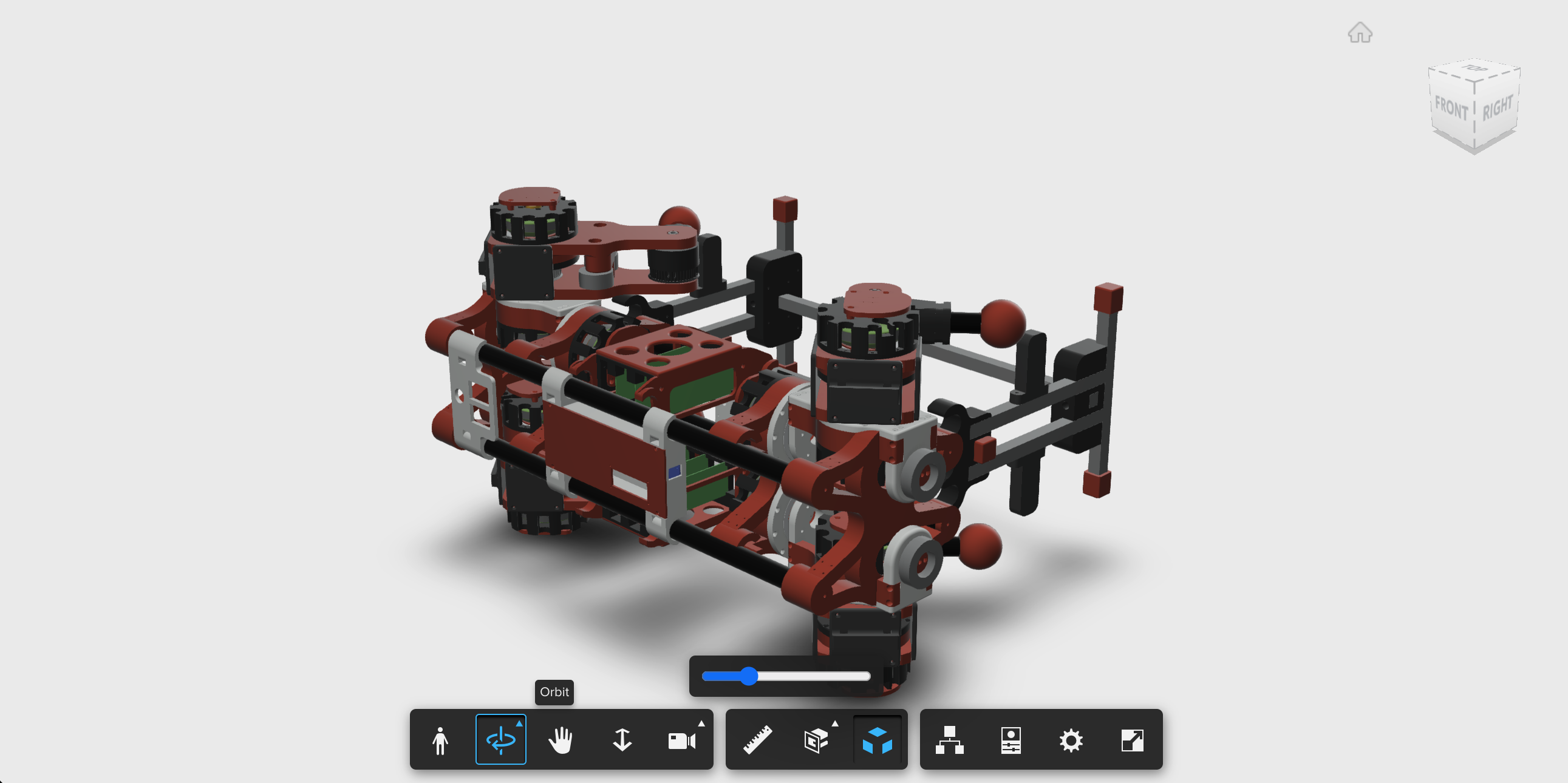

First, find your desired AutoCAD asset. Once selected, a 3D preview will be generated:
The Viewing Toolbar can be used to manipulate the 3D preview. As per AutoDesk's Documentation:
Orbit: (3D only) In orbit mode, the camera moves around the focal point of the model. In this mode, the up direction is always maintained. Click the arrow for orbit or free orbit options.
Pan: Moves the view parallel to the screen.
Fit to View: Position the bounding box centre of the current selection at the centre of the viewport.
Zoom Window: Click on the arrow to see zoom options: Zoom or Zoom Window. With Zoom Window, you can drag a box to zoom on a selected area or window on the model.
Place me: (3D Revit files only, version 2017 or later) allows you to quickly jump from a sheet to a corresponding location in a model. See the Place Me help topic to learn more.
First Person: (3D only) With the First Person tool, you can navigate through a model as if you are walking through it.
Rotate Page: (2D only) Click to rotate the file 90 degrees anticlockwise.
Section Analysis: (3D only) Click on the arrow to view the model in sections along the X, Y or Z planes.
Measure: Use the tools to measure distance, angles or area. You can also calibrate using a known measurement and specify the units and precision settings.
Settings: Use the tabs on the Settings dialog box to customise the viewer. You can edit the performance and display settings, navigational tools and visual quality, and change the image environment and lighting. A description of each setting is displayed on the dialog box.
Properties: Inspect properties of the model or selected objects, including constraints, materials and finishes and identifying data.
Full Screen: View the model in full screen mode.
More information on the Viewing Toolbar can be found here
